Hot Mix Asphalt (HMA) is the foundation of modern road infrastructure. From national highways to airport runways, its durability and flexibility make it the preferred material for paving. But behind every smooth stretch of asphalt lies a sophisticated production system—the Hot Mix Plant.
If you are new to road construction business, understanding the working process is essential for optimizing performance, ensuring quality, and meeting environmental standards.
What Is a Hot Mix Plant?
A Hot Mix Plant produces asphalt by actively heating and mixing aggregates, bitumen, and optional additives at controlled temperatures. The final product—Hot Mix Asphalt—is used for surface layers in road construction.
There are two primary types:
- Drum Mix Plant: The plant continuously produces asphalt by mixing aggregates and bitumen in a single rotating drum.
- Batch Mix Plant: The plant produces asphalt intermittently by weighing and mixing materials in batches for greater precision.

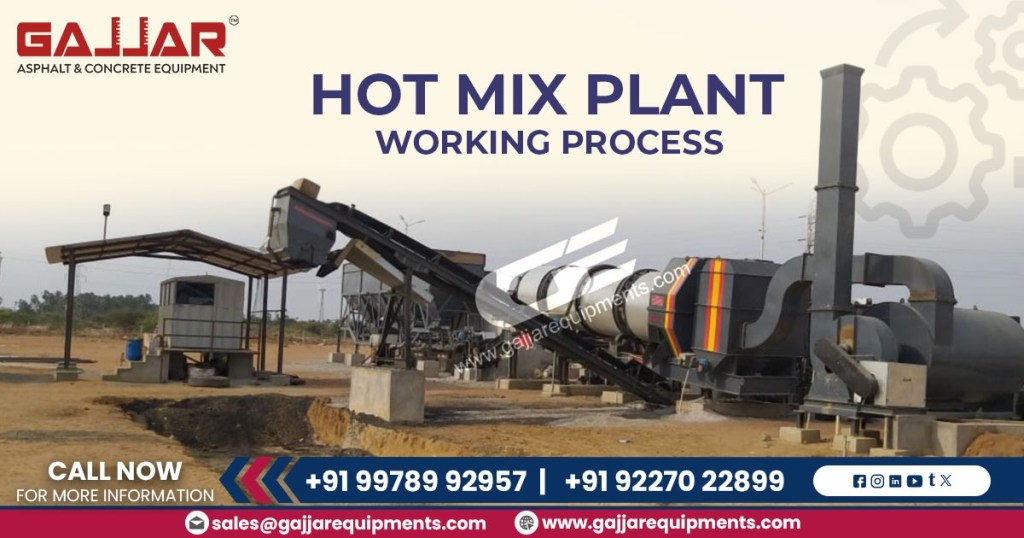

Step-by-Step Working Process of a Hot Mix Plant
1. Cold Aggregate Feeding
Process:
- The plant stores aggregates (sand, gravel, crushed stone) in cold feed bins, typically with 3–5 compartments based on size.
- Vibratory feeders regulate the flow of each aggregate type onto a collecting conveyor belt.
- The belt transfers aggregates to the drying drum or elevator.
Purpose:
Ensures consistent gradation and controlled feed rate for optimal mix design.
Efficiency Tip:
Covered bins reduce moisture, saving fuel during drying.
2. Drying and Heating of Aggregates
Process:
- Aggregates enter a rotating drum dryer, where a burner (diesel, LDO, LPG, or dual-fuel) heats them to 150–180°C.
- The plant evaporates moisture from the aggregates and prepares them for mixing.
Purpose:
Removes moisture and brings aggregates to the ideal temperature for bitumen binding.
Efficiency Tip:
Counterflow drum designs offer better heat transfer and lower emissions.
3. Bitumen Heating and Storage
Process:
- The plant stores bitumen in thermally insulated tanks and heats it using thermic oil systems to maintain 150–170°C.
- The plant pumps bitumen through flow meters into the mixing zone.
Purpose:
Ensures proper viscosity and adhesion during mixing.
Safety Tip:
Automated temperature controls prevent overheating and fire hazards.
4. Mixing Process
Drum Mix Plant:
- The plant continuously mixes aggregates and bitumen in the same drum.
- The plant injects optional additives (polymers, anti-stripping agents) during mixing.
Batch Mix Plant:
- Aggregates are lifted via a bucket elevator to the batch tower.
- Materials are weighed in weigh hoppers, then mixed in a pugmill mixer.
- Bitumen and additives are added based on stored recipes.
Purpose:
Creates a homogenous asphalt mix with desired strength, flexibility, and durability.
Customization Tip:
Batch plants allow multiple mix designs for varied project needs.
5. Storage and Discharge
Process:
- The hot mix is discharged into insulated storage silos or directly into tippers or transit mixers.
- Asphalt must be laid within 30–45 minutes to retain temperature and workability.
Purpose:
Delivers ready-to-use asphalt for paving operations.
Efficiency Tip:
Use silo heating systems to extend mix usability during delays.
Quality Control Measures
- Temperature Monitoring: Ensures proper binder adhesion and compaction.
- Gradation Testing: Confirms aggregate distribution matches design.
- Binder Content Analysis: Verifies bitumen proportions.
- Moisture Control: Prevents steam explosions and weak bonding.
- Viscosity Checks: Ensures bitumen performance under traffic loads.
Applications of Hot Mix Asphalt
- National highways and expressways
- Urban road networks and flyovers
- Airport runways and taxiways
- Industrial zones and logistics parks
- Export projects in tropical and high-altitude regions
Drum Mix vs. Batch Mix: Quick Comparison
| Feature | Drum Mix Plant | Batch Mix Plant |
| Production Type | Continuous | Intermittent |
| Mix Design Flexibility | Limited | High |
| Output Capacity | High (up to 150 TPH) | Moderate (up to 120 TPH) |
| Installation Time | Faster | Longer |
| Best Use Case | Highways, rural roads | Airports, urban roads, export projects |
